Portable Hardness Tester Static Pin Brinell Hardness Tester With Test Force 1580Kgf

Name: Portable Hardness Tester Static Pin Brinell Hardness Tester With Test Force 1580Kgf
Brand: iqualitrol
Price: 1 USD

Best Portable Hardness Tester Static Pin Brinell Hardness Tester With Test Force 1580Kgf wholesale

Brand Name : iqualitrol

Model Number : PHB-150

MOQ : 1 Set

Payment Terms : T/T

Supply Ability : 50 Sets per Month

Delivery Time : 5 Working Days

Packaging Details : Carton Box

Model : PHB-150

Name : Portable Metal Hardness Tester

Test Force : 1580Kgf

Indenter : 7.26mm Steel Ball Indenter

Hardness : Range 100~650HBW

Open Space : 150x100mm (Throat Depth)

Contact Now

Portable Hardness Tester Static Pin Brinell Hardness Tester With Test Force 1580Kgf

Features:

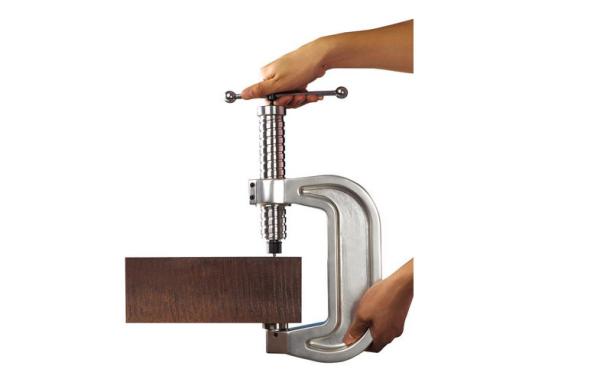

The PHB-150 Pin Static Brinell hardness tester is designed following the Brinell hardness test method. The test force is controlled by a shear pin. After reading the diameter of the indention with the reading microscope, the Brinell hardness value can be obtained from the look up table.

This kind of pin Brinell hardness tester is especially suitable for assemblies inconvenient to be taken to the lab and not allowed to be cut.

Applications:

Used to test the hardness of forgings, castings, steels, nonferrous metal and its alloy products, and to test the hardness of annealed, normalizing and tempered mechanical parts.

Advantages:
Compared to the rebound type hardness tester, the pin Brinell portable hardness tester has many advantages such as higher precision, fewer factors affecting accuracy and lower requirement on the surface roughness.

The test result meets the requirements of most drawings without conversion and is more widely accepted in the international business.

Technical Specifications:

Test Force	1580 kgf
Indenter	7.26mm Steel ball indenter, test range 100~350HBW
Indenter	4mm Carbide ball Indenter,test range 350~650HBW
Indicator Error	≤2~3% Comply with ISO, ASTM
Repeatability Error	≤2~3% Comply with ISO, ASTM
Test Range	100~650HBW
Opening dimension	150mm(Height) x100mm(Throat Depth)
Packing Weight	7.2 kg
